LCC8-10ABW-L
CONN TERM RECT TONG 8 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

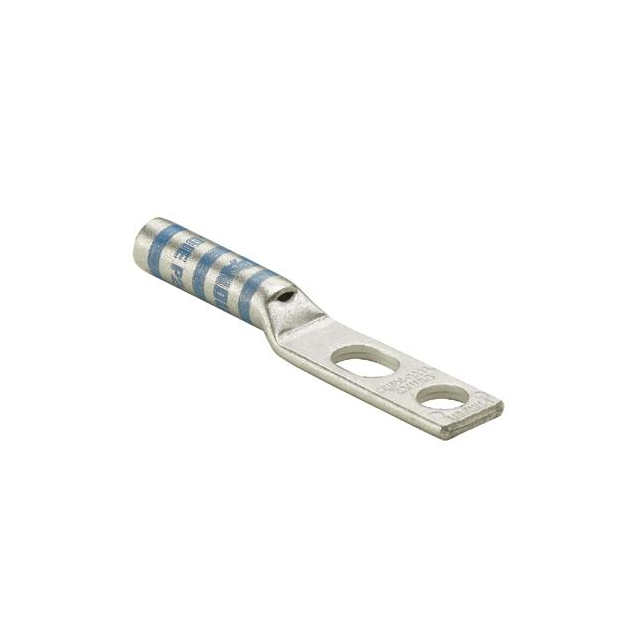

Panduit Corp Pan-Lug™ LCC8-10ABW-L is a non-insulated, rectangular tongue terminal connector designed for 8 AWG wire. This component features a dual stud configuration, accommodating a #10 stud size. Manufactured with a robust construction, it is suitable for demanding applications across industrial automation, power distribution, and renewable energy sectors. The terminal type is crimp, barrel, with an overall length of 2.140 inches (54.36mm) and a width of 0.410 inches (10.41mm). Tab thickness is 0.080 inches (2.03mm). This bulk-packaged component offers a free-hanging (in-line) mounting type for flexible integration into various systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 2.140"" (54.36mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.410"" (10.41mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
