LCC8-10A-L
CONN TERM RECT TONG 8 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

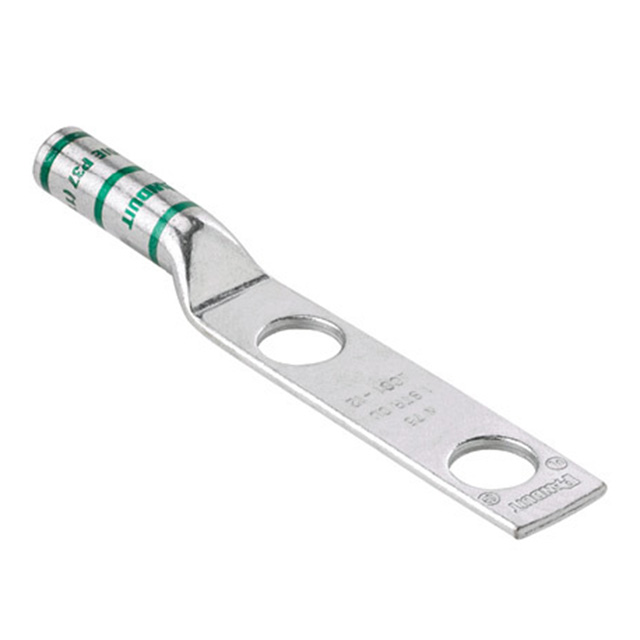

Panduit Corp Pan-Lug™ LCC8-10A-L is a non-insulated, rectangular tongue terminal designed for 8 AWG wire. This component features a two-stud hole configuration, accommodating a #10 stud size with a tab thickness of 0.080 inches (2.03mm). The terminal offers a crimp termination with a barrel design, ensuring a secure connection. With an overall length of 2.070 inches (52.58mm) and an outer edge width of 0.410 inches (10.41mm), it is suitable for free-hanging (in-line) mounting. This Panduit Corp component, supplied in bulk packaging, is a reliable choice for applications within the industrial and aerospace sectors where robust electrical connections are critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 8 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | 2.070"" (52.58mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.410"" (10.41mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
