LCC600-12WH-6
CONN TERM RECT TONG 600 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

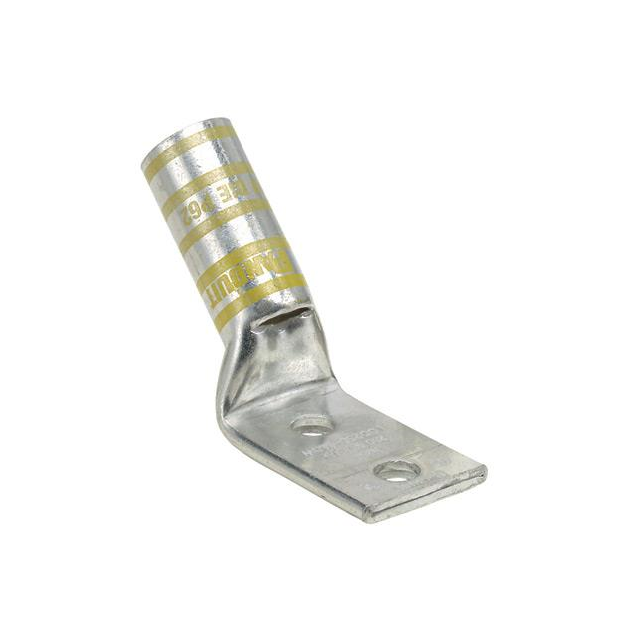

Panduit Corp Pan-Lug™ LCC600-12WH-6 is a non-insulated, rectangular tongue terminal connector designed for 600 MCM (kcmil) wire. This terminal features a 1/2 stud size and a tab thickness of 0.260 inches (6.60mm). The LCC600-12WH-6 offers a 1.700-inch (43.18mm) outer edge width and is suitable for crimp barrel termination. Mounting options include free hanging (in-line) or at a 45° angle. This component is commonly employed in power distribution, industrial automation, and renewable energy sectors where robust and reliable electrical connections are critical. The terminal is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Green |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 600MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.700"" (43.18mm) |
| Tab Thickness | 0.260"" (6.60mm) |
| Terminal Style | Two Stud Holes |
