LCC6-56BWF-L
CONN TERM RECT TONG 6 AWG #5/16Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

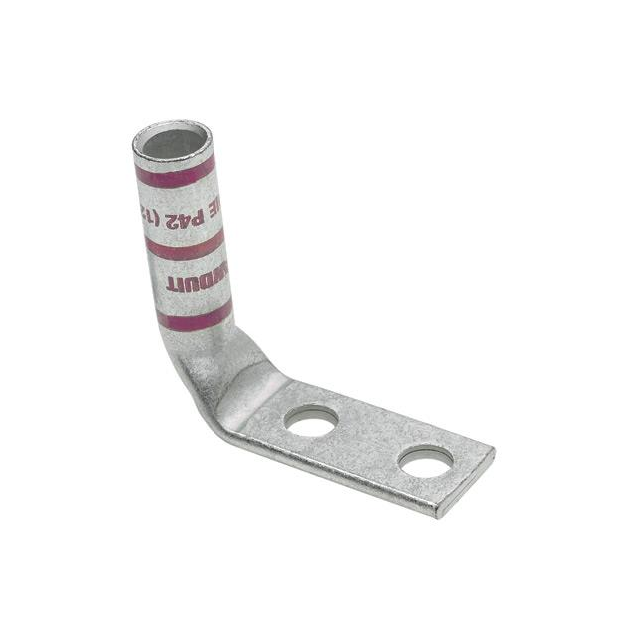

Panduit Corp Pan-Lug™ LCC6-56BWF-L is a non-insulated, rectangular tongue terminal connector designed for 6 AWG wire. This component features a 5/16 stud size and a tab thickness of 0.070 inches (1.78mm). The terminal style supports two stud holes, and termination is achieved via crimp to the barrel. Its overall width is 0.560 inches (14.22mm). Mounting is available as free hanging (in-line) or right angle. This component is commonly utilized in power distribution and industrial control applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 5/16 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.560"" (14.22mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | Two Stud Holes |
