LCC6-38DH-L
CONN TERM RECT TONG 6 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

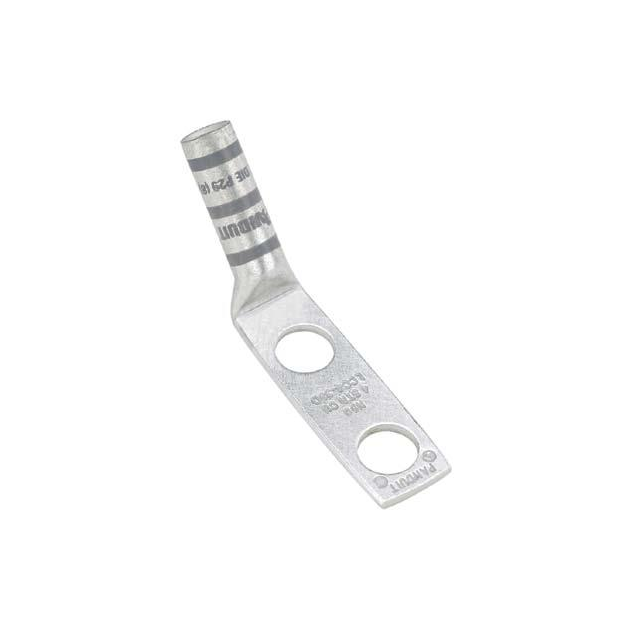

Panduit Corp Pan-Lug™ LCC6-38DH-L is a non-insulated rectangular tongue terminal connector designed for robust electrical connections. This component utilizes a two-stud hole configuration, accommodating a 6 AWG wire gauge. The terminal features a 3/8 stud size and a tab thickness of 0.050 inches (1.27mm). Its outer width measures 0.620 inches (15.75mm). The LCC6-38DH-L is suitable for crimp termination with a barrel. Mounting options include free hanging (in-line) or at a 45° angle. This terminal is commonly found in industrial and power distribution applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Two Stud Holes |
