LCC6-38DF-L
CONN TERM RECT TONG 6 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

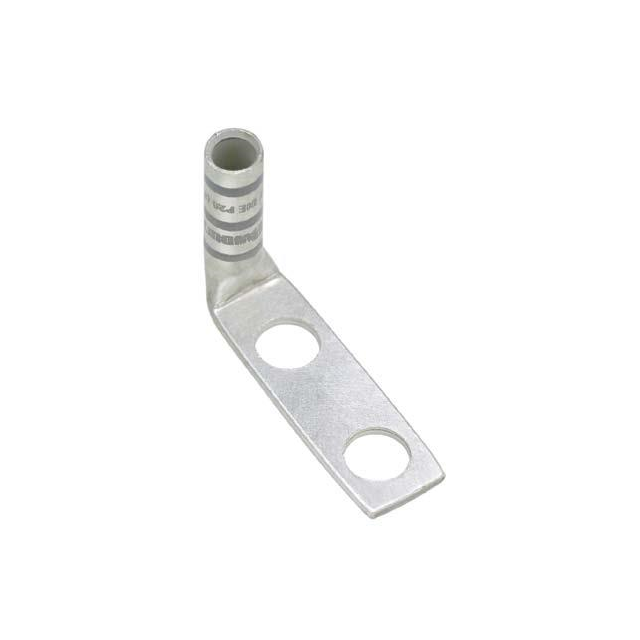

Panduit Corp's Pan-Lug™ LCC6-38DF-L is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates 6 AWG wire with a 3/8" stud size and features a 0.050" tab thickness. The terminal offers a dual stud hole configuration for secure mounting. Its construction supports crimp termination via a barrel connection. With an overall width of 0.620", this component is suitable for in-line and right-angle mounting. The LCC6-38DF-L is commonly employed in power distribution, industrial automation, and renewable energy applications where reliable termination of heavy-gauge conductors is critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.050"" (1.27mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
