LCC6-38CW-L
CONN TERM RECT TONG 6 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

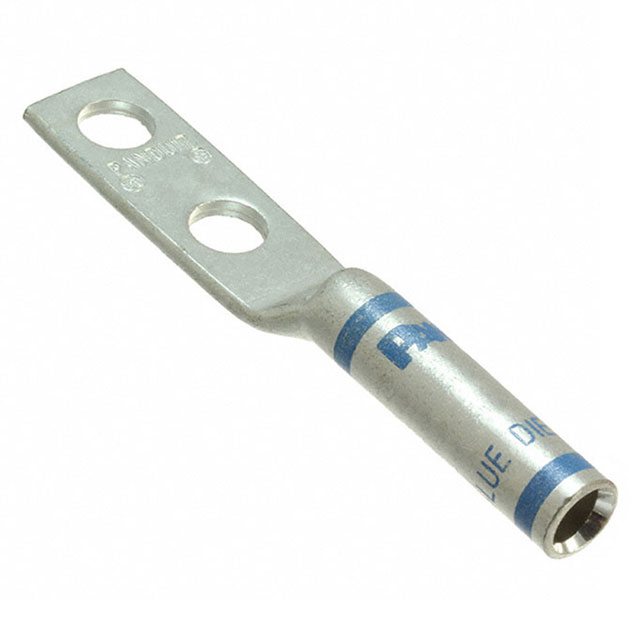

Panduit Corp Pan-Lug™ LCC6-38CW-L is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This terminal features a 3/8 stud size and accommodates 6 AWG wire gauge, utilizing a barrel termination style suitable for crimping. With a 0.060" (1.52mm) tab thickness and an overall length of 2.960" (75.18mm), the LCC6-38CW-L offers a 0.620" (15.75mm) outer edge width. Its free-hanging, in-line mounting type and two stud holes facilitate straightforward installation in various industrial applications. This component is commonly employed in power distribution, industrial automation, and heavy equipment manufacturing sectors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 2.960"" (75.18mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.060"" (1.52mm) |
| Terminal Style | Two Stud Holes |
