LCC6-38BWF-L
CONN TERM RECT TONG 6 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

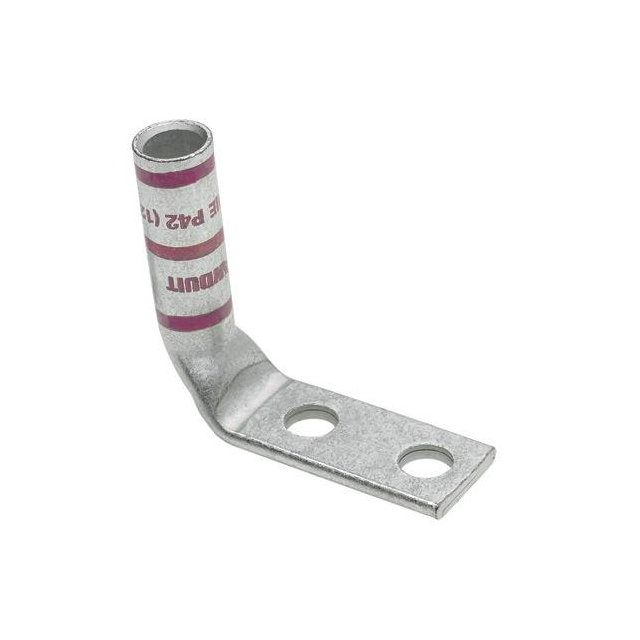

Panduit Corp Pan-Lug™ LCC6-38BWF-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component utilizes a two-stud hole configuration, accommodating a 6 AWG wire gauge. The terminal features a 3/8 stud size and a tab thickness of 0.060 inches (1.52mm), with an overall width of 0.620 inches (15.75mm). Termination is achieved via a crimp barrel. Its mounting options include free-hanging (in-line) and right-angle configurations. This Panduit Corp Pan-Lug™ terminal is commonly employed in industrial automation, power distribution, and transportation sectors where reliable electrical termination is critical. Packaged in bulk, the LCC6-38BWF-L offers a durable solution for demanding applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.060"" (1.52mm) |
| Terminal Style | Two Stud Holes |
