LCC6-14W-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

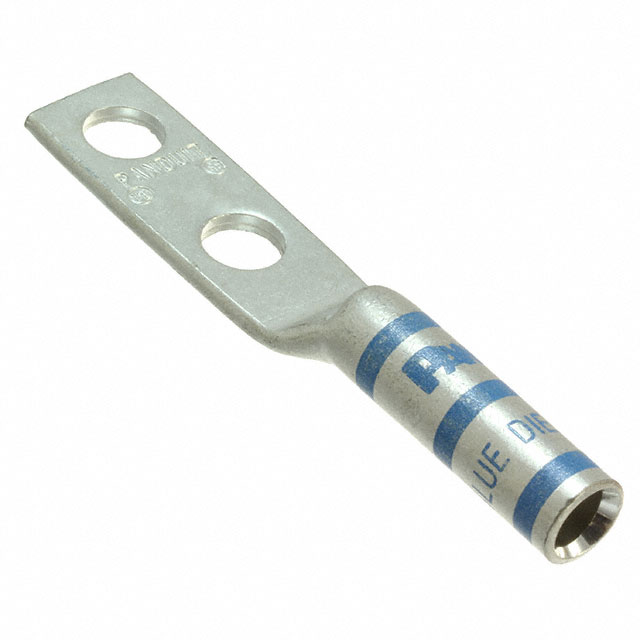

Panduit Corp Pan-Lug™ LCC6-14W-L is a non-insulated, rectangular tongue terminal connector designed for 6 AWG wire. This component features a 1/4 stud size, a tab thickness of 0.080 inches (2.03mm), and an overall length of 3.610 inches (91.70mm). The terminal style includes two stud holes, and the termination method is crimp, utilizing a barrel connection. Its outer edges measure 0.480 inches (12.19mm) wide. The LCC6-14W-L is suitable for applications in electrical distribution and power transmission where robust and reliable wire termination is critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 3.610"" (91.70mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
