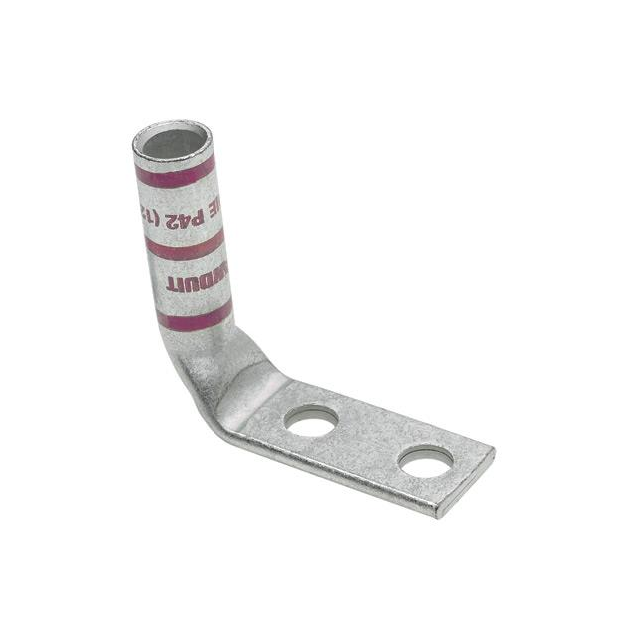

LCC6-14EWF-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp's Pan-Lug™ LCC6-14EWF-L is a non-insulated, rectangular tongue terminal designed for efficient wire termination. This component accepts 6 AWG wire and features a 1/4 stud size with a tab thickness of 0.080 inches (2.03mm). The terminal offers a dual stud hole configuration, accommodating a 1/4 stud, and is suitable for crimp barrel terminations. Its overall width is 0.480 inches (12.19mm). The LCC6-14EWF-L is provided in bulk packaging and is typically utilized in power distribution, industrial automation, and electrical infrastructure applications where robust and reliable connections are essential. The mounting type is free hanging (in-line) or right angle.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
