LCC6-14DWF-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

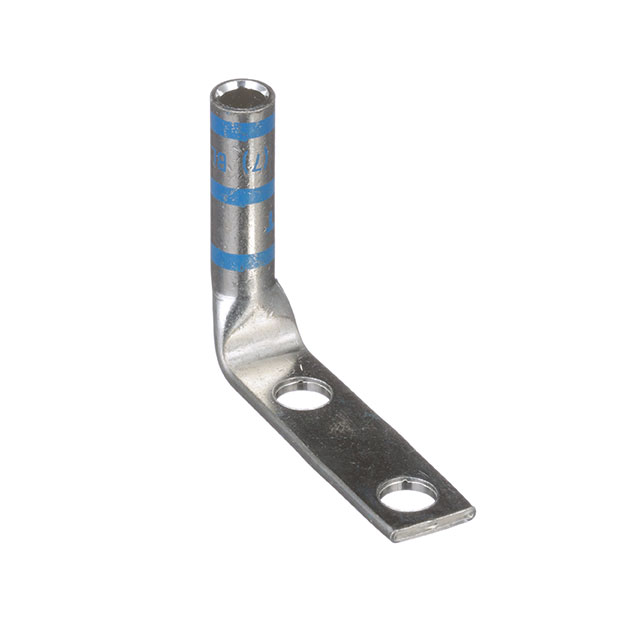

Panduit Corp's Pan-Lug™ LCC6-14DWF-L is a non-insulated rectangular tongue terminal connector designed for efficient wire termination. This component accommodates 6 AWG wire and features a 1/4" stud size for secure connections. The terminal style includes two stud holes, and the termination method is crimp, with a barrel for robust electrical contact. With a tab thickness of 0.080" (2.03mm) and an outer edge width of 0.480" (12.19mm), it provides a substantial connection point. The mounting type is flexible, supporting both free hanging (in-line) and right-angle configurations. This Panduit Corp terminal is commonly utilized in power distribution and industrial automation applications. Supplied in bulk packaging, the LCC6-14DWF-L offers a reliable solution for demanding electrical infrastructure.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
