LCC6-14DH-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

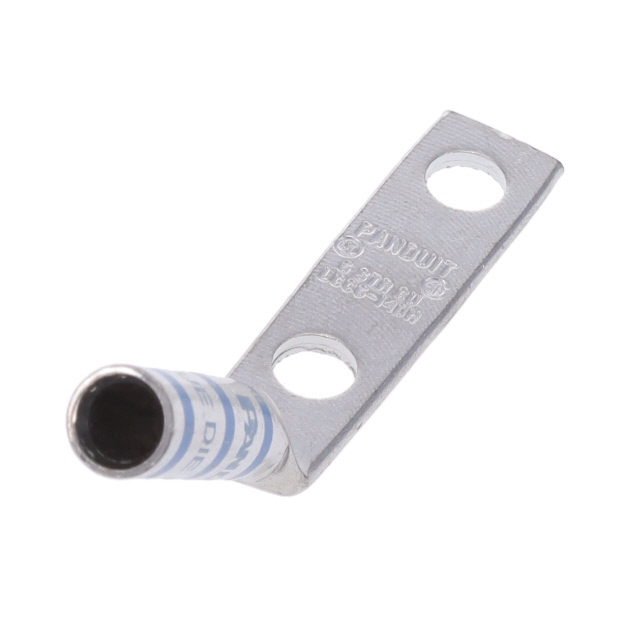

Panduit Corp Pan-Lug™ LCC6-14DH-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 6 AWG wire gauge and features a 1/4 stud size with a tab thickness of 0.080 inches (2.03mm). The terminal style includes two stud holes, facilitating secure mounting. It is suitable for free hanging (in-line) applications and can be oriented at a 45° angle. Termination is achieved via crimp connection to the barrel. The outer edges measure 0.480 inches (12.19mm) in width. This Panduit Corp component is utilized in industrial automation, power distribution, and renewable energy sectors. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
