LCC6-14BH-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

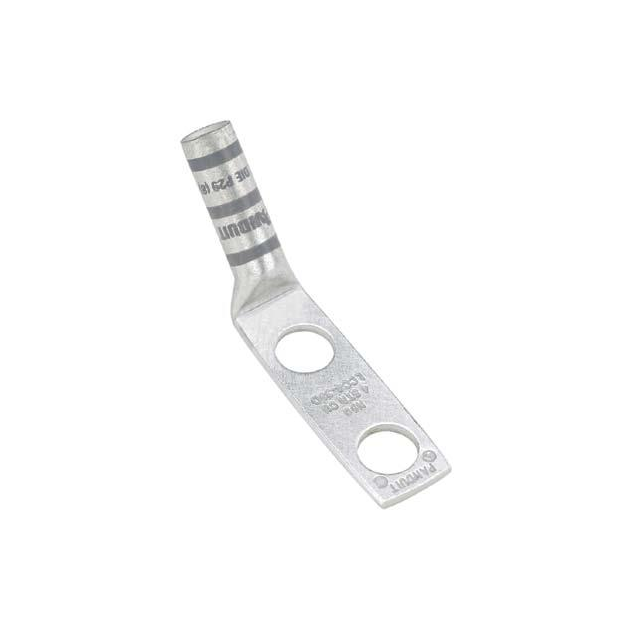

Panduit Corp Pan-Lug™ LCC6-14BH-L is a non-insulated, rectangular tongue terminal connector designed for 6 AWG wire. This component features a 1/4" stud size and a tab thickness of 0.080" (2.03mm). It offers a bulk packaging solution with a blue color designation. The terminal style includes two stud holes, and termination is achieved through a crimp barrel method. The overall width is 0.480" (12.19mm). This electrical connector is suitable for applications requiring robust and reliable terminations in various industries including industrial automation, power distribution, and telecommunications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
