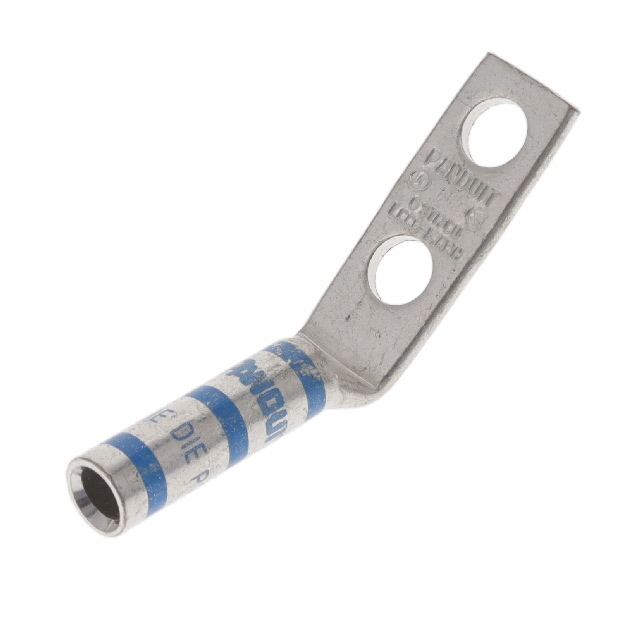

LCC6-14AWH-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp's Pan-Lug™ LCC6-14AWH-L is a non-insulated, rectangular tongue terminal designed for robust wire termination. This component accommodates 6 AWG wire via a crimp barrel termination. Featuring two stud holes with a 1/4 stud size and a tab thickness of 0.080 inches (2.03mm), it offers secure and reliable connections. The terminal has an outer width of 0.480 inches (12.19mm) and is suitable for free hanging (in-line) or 45° angle mounting configurations. Commonly utilized in power distribution, industrial automation, and electrical infrastructure applications, the LCC6-14AWH-L is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
