LCC6-14AH-L
CONN TERM RECT TONG 6 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

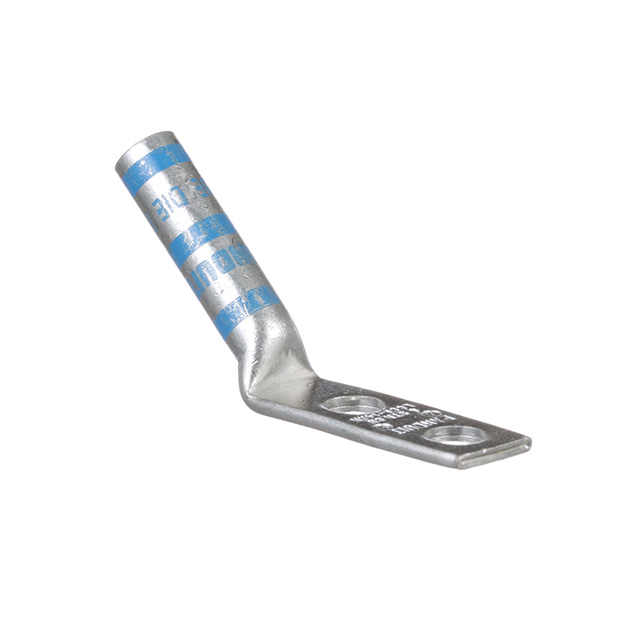

Panduit Corp LCC6-14AH-L is a non-insulated Pan-Lug™ terminal connector featuring a rectangular tongue design. This component is engineered for 6 AWG wire gauge and accommodates a 1/4" stud size. The terminal style includes two stud holes, with a tab thickness of 0.080" (2.03mm) and an outer edge width of 0.480" (12.19mm). Termination is achieved via crimp connection to the barrel. Mounting options include free hanging (in-line) and a 45° angle configuration. This product is supplied in bulk packaging. It is a suitable component for applications in power distribution, electrical infrastructure, and industrial automation.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.480"" (12.19mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
