LCC6-10BWF-L
CONN TERM RECT TONG 6 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

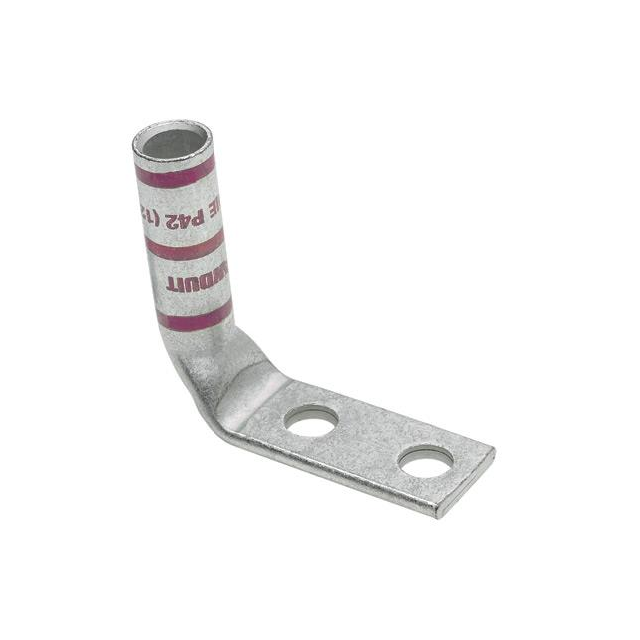

Panduit Corp Pan-Lug™ LCC6-10BWF-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 6 AWG wire gauge with a stud size of #10, featuring two stud holes for secure mounting. The terminal style is rectangular tongue with a crimp barrel termination. Key dimensions include a tab thickness of 0.080 inches (2.03mm) and an outer edge width of 0.460 inches (11.68mm). The mounting type is free hanging (in-line) with a right-angle orientation. This Panduit Corp terminal is suitable for applications in industrial automation, power distribution, and telecommunications infrastructure where reliable crimp connections are essential. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.460"" (11.68mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
