LCC6-00-L
CONN TERM RECT TONG 6 AWGManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

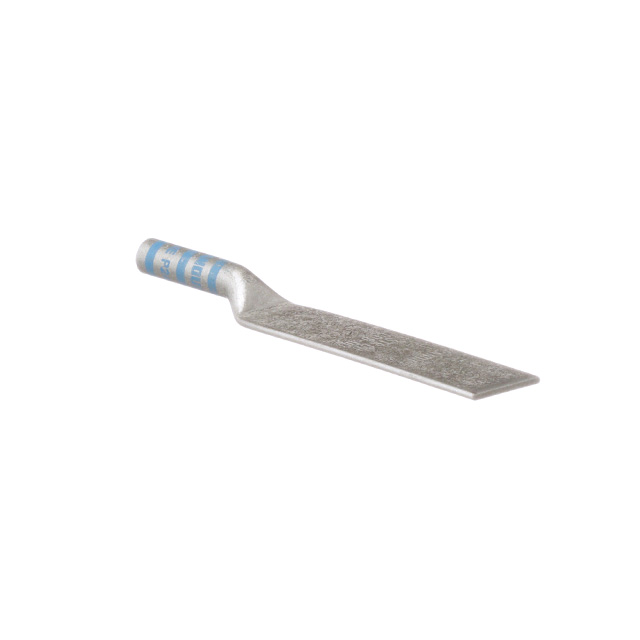

Panduit Corp Pan-Lug™ LCC6-00-L is a non-insulated, rectangular tongue terminal designed for crimp termination of 6 AWG wire. This component features a barrel termination style, a tab thickness of 0.070 inches (1.78mm), and an overall length of 4.010 inches (101.85mm). The terminal's outer edges measure 0.750 inches (19.05mm) in width. It is suitable for free hanging (in-line) mounting. This Panduit Corp terminal is commonly utilized in industrial power distribution, control panels, and electrical infrastructure applications where robust and reliable wire termination is critical. The bulk packaging is ideal for high-volume manufacturing environments.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 6 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 4.010"" (101.85mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.750"" (19.05mm) |
| Tab Thickness | 0.070"" (1.78mm) |
| Terminal Style | No Stud Hole |
