LCC500-38D-6
CONN TERM RECT TONG 500 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

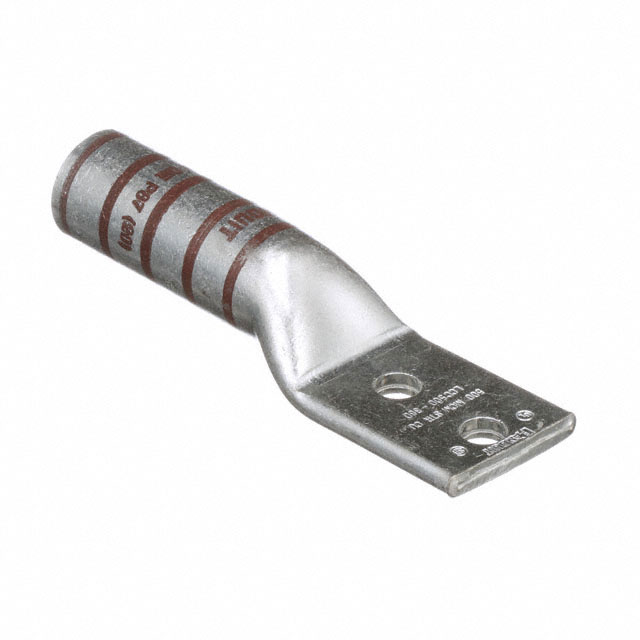

Panduit Corp Pan-Lug™ LCC500-38D-6 is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component accommodates wire gauges up to 500 kcmil and features two 3/8 stud mounting holes for secure attachment. The terminal style is a rectangular tongue with a barrel termination suitable for crimping. With an overall length of 5.180 inches and a width of 1.540 inches across its outer edges, the LCC500-38D-6 offers substantial surface area for high-current applications. The tab thickness measures 0.220 inches. This terminal is commonly utilized in power distribution, industrial automation, and renewable energy systems requiring reliable termination for large conductors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | 5.180"" (131.57mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
