LCC500-14BWF-6
CONN TERM RECT TONG 500 MCM #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

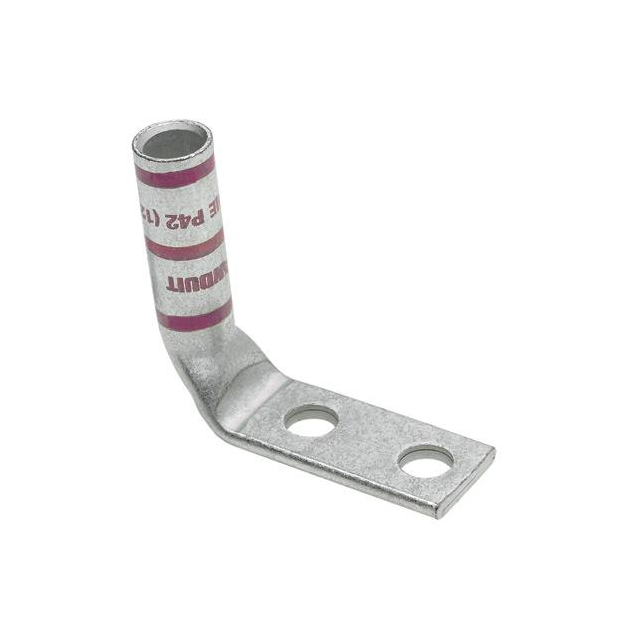

Panduit Corp LCC500-14BWF-6 is a non-insulated Pan-Lug™ terminal connector featuring a rectangular tongue design for 500 MCM (kcmil) wire gauge. This component utilizes a crimp barrel termination method. It is equipped with two stud holes, accommodating a 1/4 stud size with a tab thickness of 0.220" (5.59mm). The overall width across the outer edges is 1.540" (39.12mm). Mounting options include free hanging (in-line) and right-angle configurations. This product is supplied in bulk packaging and is utilized in industrial power distribution and electrical infrastructure applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
