LCC500-14BF-6
CONN TERM RECT TONG 500 MCM #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

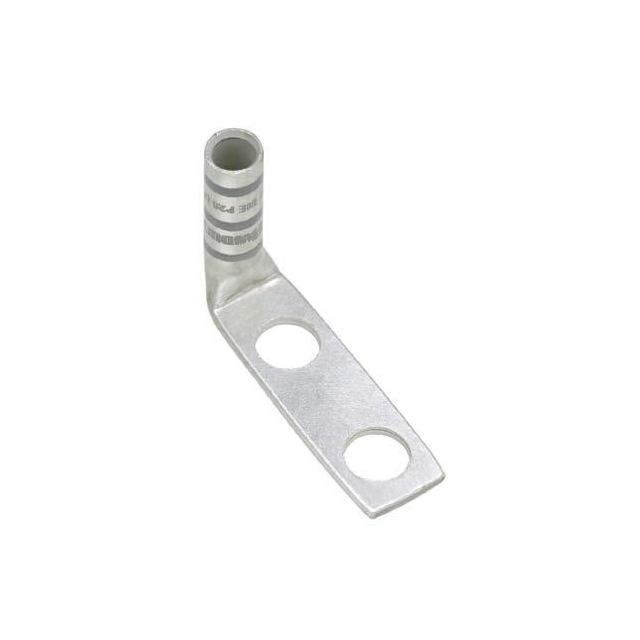

Panduit Corp Pan-Lug™ LCC500-14BF-6 is a non-insulated, rectangular tongue terminal connector designed for high-capacity wire termination. This component is engineered for crimp barrel termination and supports wire gauges up to 500 MCM (kcmil). It features a robust construction with a 1/4 stud size and a tab thickness of 0.220" (5.59mm). The terminal style includes two stud holes, with an overall width of 1.540" (39.12mm). Mounting options include free hanging (in-line) and right angle configurations. This Panduit Corp Pan-Lug™ terminal is utilized in various industrial applications requiring secure and reliable power connections, including the energy, industrial automation, and heavy equipment sectors. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
