LCC500-14B-6
CONN TERM RECT TONG 500 MCM #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

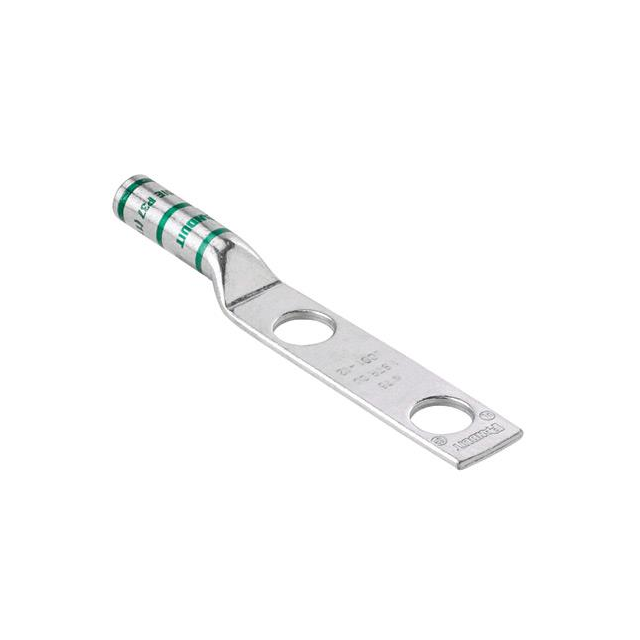

Panduit Corp Pan-Lug™ LCC500-14B-6 is a non-insulated, rectangular tongue, two-stud terminal connector designed for 500 MCM (kcmil) wire. This c-shaped barrel termination lug features a 1/4 stud size with a tab thickness of 0.220 inches. The overall length is 4.700 inches, and the outer width is 1.540 inches. Manufactured for reliable electrical connections, this component is suitable for demanding applications in the power distribution and industrial automation sectors. It is provided in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 4.700"" (119.38mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
