LCC500-12WF-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

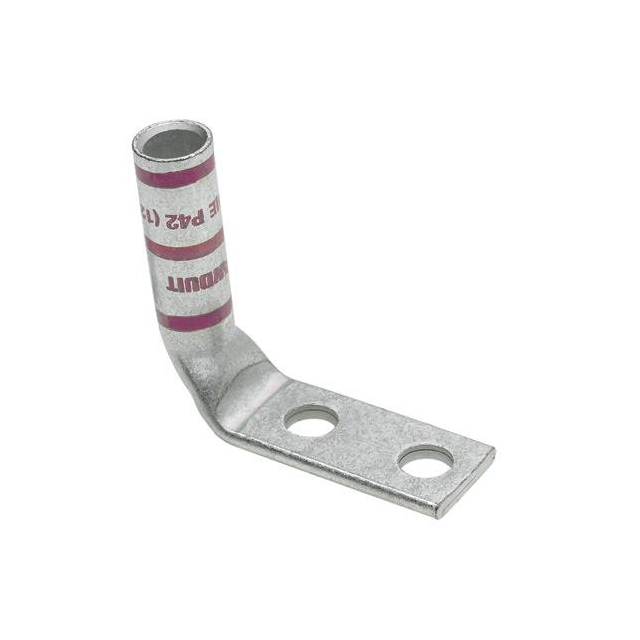

Panduit Corp Pan-Lug™ LCC500-12WF-6 is a non-insulated, rectangular tongue terminal connector designed for high-capacity electrical connections. This component supports wire gauges of 500MCM (kcmil) and features a 1/2 stud size with a tab thickness of 0.220 inches (5.59mm). The terminal style includes two stud holes for secure mounting. Termination is achieved via crimp, with a barrel design for robust connections. The overall width of the outer edges is 1.540 inches (39.12mm). This Panduit Corp component is suitable for industrial power distribution, heavy-duty electrical equipment, and utility infrastructure applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
