LCC500-12F-6
CONN TERM RECT TONG 500 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

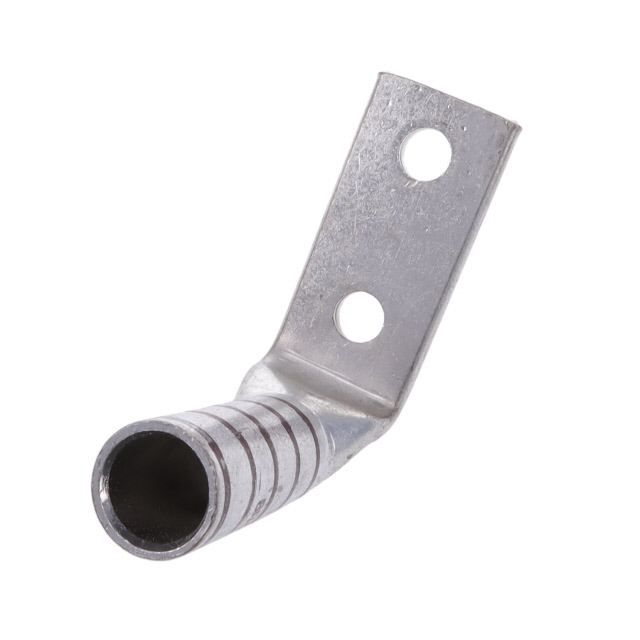

Panduit Corp Pan-Lug™ LCC500-12F-6 is a non-insulated, rectangular tongue terminal connector designed for high-capacity wire termination. This component accommodates 500 MCM (kcmil) wire gauge and features a dual stud configuration with a 1/2" stud size. The terminal's construction includes a 0.220" (5.59mm) tab thickness and a substantial 1.540" (39.12mm) outer width. Termination is achieved via crimp to the barrel. Mounting options include free hanging (in-line) and right angle configurations. This Panduit Corp Pan-Lug™ terminal is suitable for demanding applications across industrial and power distribution sectors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | Two Stud Holes |
