LCC500-00W-6
CONN TERM RECT TONG 500 MCMManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

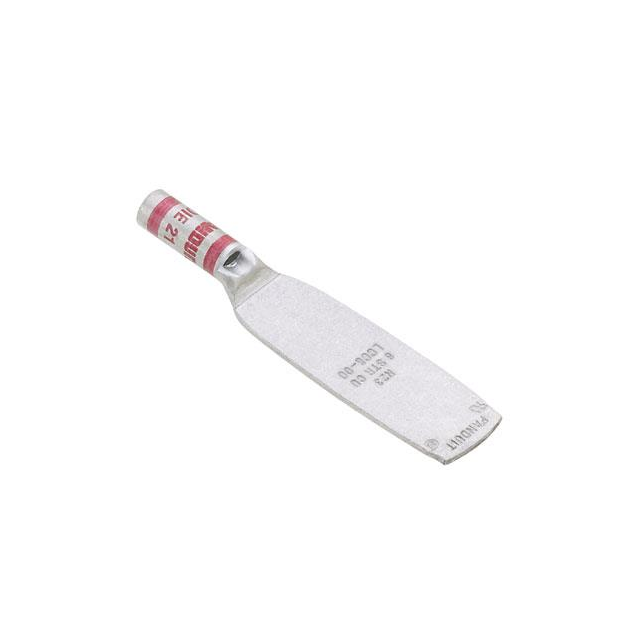

Panduit Corp Pan-Lug™ LCC500-00W-6 is a non-insulated, rectangular tongue terminal designed for high-current applications. This terminal accepts 500 MCM (kcmil) wire gauge and utilizes a crimp barrel termination method. Featuring a robust construction, it offers a width of 1.540" (39.12mm) and a tab thickness of 0.220" (5.59mm), with an overall length of 6.120" (155.45mm). The LCC500-00W-6 is suitable for free-hanging, in-line mounting configurations. This component is commonly employed in power distribution, industrial automation, and heavy equipment sectors where reliable and secure electrical connections are paramount. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Brown |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 500MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 6.120"" (155.45mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.540"" (39.12mm) |
| Tab Thickness | 0.220"" (5.59mm) |
| Terminal Style | No Stud Hole |
