LCC400-38DWH-6
CONN TERM RECT TONG 400 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

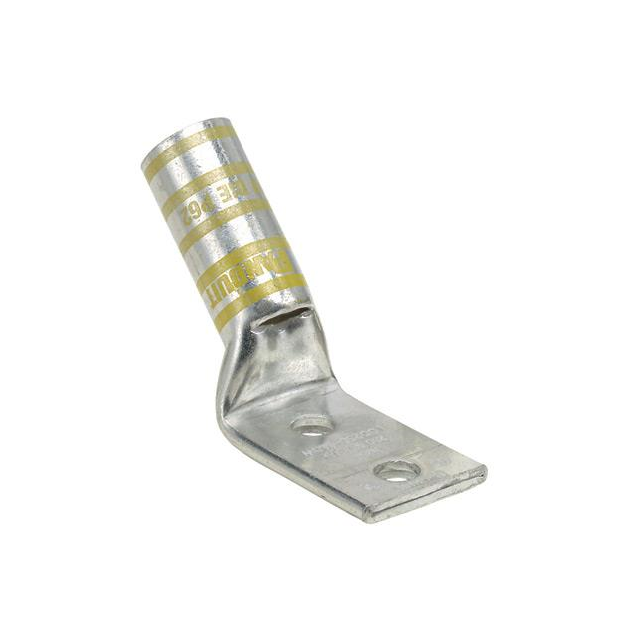

The Panduit Corp Pan-Lug™ LCC400-38DWH-6 is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a crimp barrel termination and is specified for 400MCM (kcmil) wire gauge. It supports a 3/8 stud size with a tab thickness of 0.180 inches (4.57mm) and an outer edge width of 1.390 inches (35.31mm). The mounting type allows for free hanging (in-line) or a 45° angle configuration. This terminal connector is commonly utilized in power distribution, industrial control, and renewable energy applications requiring high current handling capabilities and reliable terminations for large gauge conductors.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Two Stud Holes |
