LCC400-38DH-6
CONN TERM RECT TONG 400 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

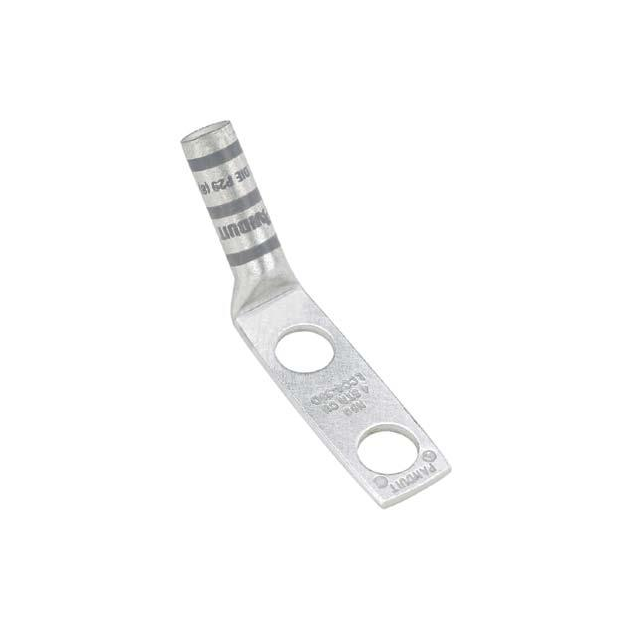

Panduit Corp Pan-Lug™ LCC400-38DH-6 is a non-insulated, rectangular tongue terminal connector designed for demanding electrical applications. This component utilizes crimp termination and features a barrel for secure wire connection. Engineered for 400 MCM (kcmil) wire gauge, it supports a 3/8 stud size with a tab thickness of 0.180 inches (4.57mm). The terminal style includes two stud holes, providing robust connection options. With an overall width of 1.390 inches (35.31mm), the LCC400-38DH-6 is suitable for free hanging (in-line) or 45° angle mounting configurations. This connector is commonly employed in power distribution, industrial automation, and heavy equipment manufacturing sectors. The product is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Two Stud Holes |
