LCC400-38DF-6
CONN TERM RECT TONG 400 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

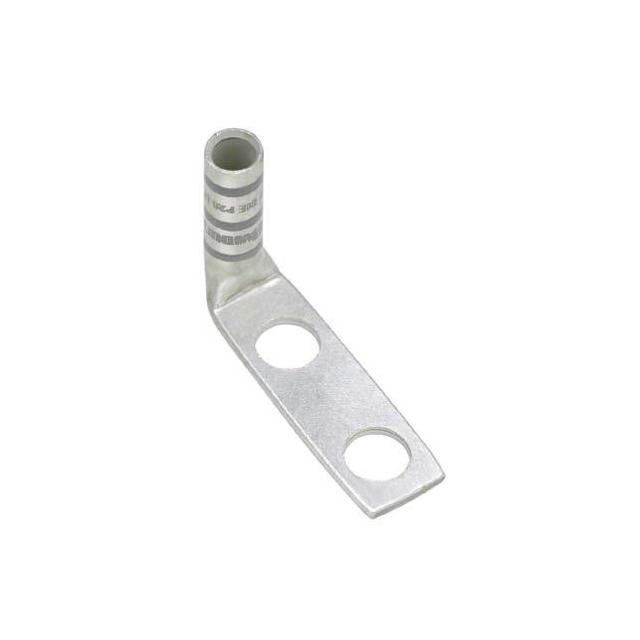

Panduit Corp's Pan-Lug™ LCC400-38DF-6 is a non-insulated, rectangular tongue terminal designed for high-capacity power connections. This component features a 400 MCM (kcmil) wire gauge capacity and a 3/8 inch stud size, ideal for robust electrical infrastructure. The terminal style includes two stud holes, facilitating secure mounting. Termination is achieved via crimp, with a barrel construction for reliable electrical contact. Notable dimensions include an outer edge width of 1.390 inches (35.31mm) and a tab thickness of 0.180 inches (4.57mm). Its mounting type offers versatility with options for free hanging (in-line) or right-angle configurations. This terminal is commonly utilized in industrial power distribution, heavy machinery, and renewable energy systems where reliable, high-current connections are paramount.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Two Stud Holes |
