LCC400-14BW-6
CONN TERM RECT TONG 400 MCM #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

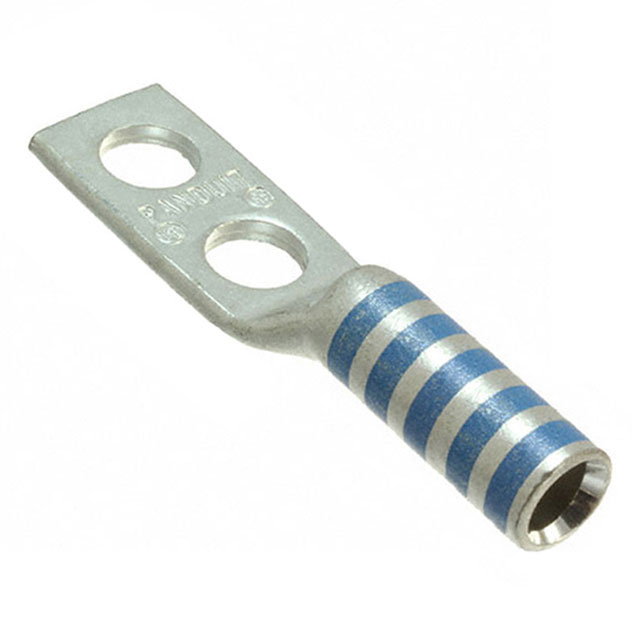

Panduit Corp Pan-Lug™ LCC400-14BW-6 is a non-insulated, rectangular tongue terminal connector designed for heavy-duty electrical applications. This component accommodates wire sizes up to 400 kcmil and features two stud holes with a 1/4 stud size for secure mounting. The terminal style is a rectangular tongue with a crimp barrel termination, ensuring a robust connection. With an overall length of 4.180 inches and an outer edge width of 1.390 inches, it offers substantial surface area for reliable contact. The tab thickness is 0.180 inches. This Panduit Corp Pan-Lug™ terminal is commonly utilized in power distribution, industrial automation, and renewable energy systems where high current capacity and dependable termination are critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 4.180"" (106.17mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Two Stud Holes |
