LCC400-12WH-6
CONN TERM RECT TONG 400 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

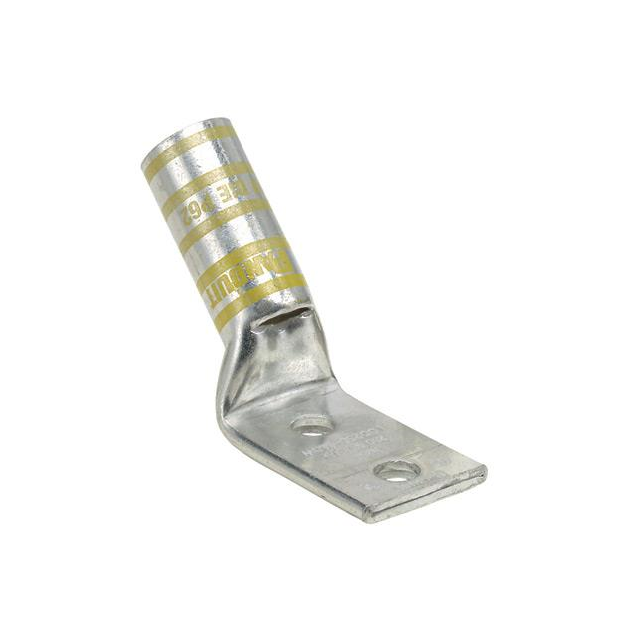

Panduit Corp Pan-Lug™ LCC400-12WH-6 is a non-insulated, rectangular tongue terminal connector designed for 400 MCM (kcmil) wire. This connector features a 1/2 stud size and a tab thickness of 0.170 inches (4.32mm). The overall width is 1.280 inches (32.51mm). Termination is achieved via a crimp barrel. The mounting type offers flexibility with options for free hanging (in-line) or a 45° angle. This component is utilized in power distribution and industrial automation applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Two Stud Holes |
