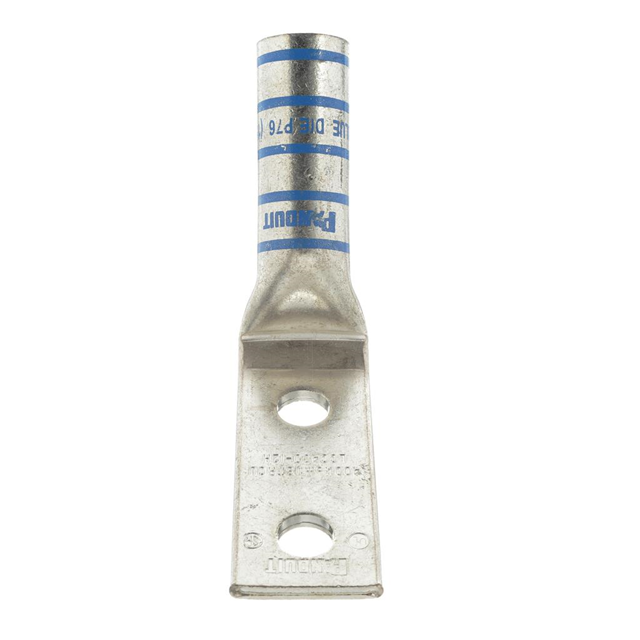

LCC400-12H-6
CONN TERM RECT TONG 400 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCC400-12H-6 is a non-insulated, rectangular tongue terminal connector designed for heavy-duty electrical applications. This component accommodates wire sizes up to 400 MCM (kcmil) and features a 1/2 stud size with a 0.180" (4.57mm) tab thickness. The terminal style includes two stud holes, offering versatile mounting options. Termination is achieved via crimp to the barrel. The overall width at the outer edges is 1.390" (35.31mm). This connector is suitable for in-line mounting or at a 45° angle. It finds application in power distribution and industrial automation sectors. The LCC400-12H-6 is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Two Stud Holes |
