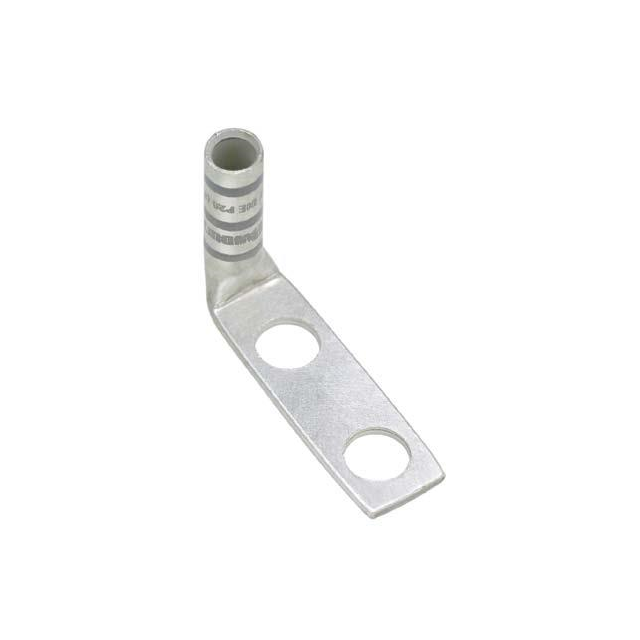

LCC400-12F-6
CONN TERM RECT TONG 400 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp's Pan-Lug™ LCC400-12F-6 is a non-insulated, rectangular tongue terminal connector designed for high-capacity power applications. This component features a 400 MCM (kcmil) wire gauge capacity and is engineered with two 1/2 stud holes for secure mounting. The terminal style supports crimp termination into a barrel, ensuring robust electrical connections. With an outer width of 1.390 inches (35.31mm) and a tab thickness of 0.180 inches (4.57mm), it is suitable for inline or right-angle mounting configurations. This Panduit Corp terminal is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing sectors where reliable, high-current connectivity is critical.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Blue |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 400MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.390"" (35.31mm) |
| Tab Thickness | 0.180"" (4.57mm) |
| Terminal Style | Two Stud Holes |
