LCC4-38DWF-L
CONN TERM RECT TONG 2-4 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

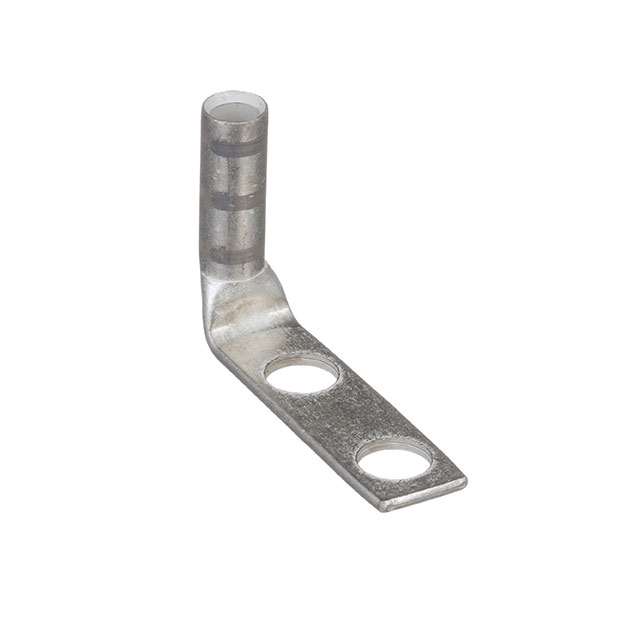

Panduit Corp LCC4-38DWF-L, a Pan-Lug™ series terminal connector, is engineered for robust wire termination. This non-insulated, rectangular tongue terminal is designed for 2-4 AWG wire gauges, accepting a 3/8" stud size. It features a crimp barrel termination and two stud holes, providing secure and reliable connections. The terminal's tab thickness is 0.080" (2.03mm), with an outer width of 0.620" (15.75mm). Mounting options include free hanging (in-line) and right angle configurations. This component is commonly utilized across industrial automation, power distribution, and electrical infrastructure sectors where dependable electrical connections are critical. Packaged in bulk.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
