LCC4-38DH-L
CONN TERM RECT TONG 2-4 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

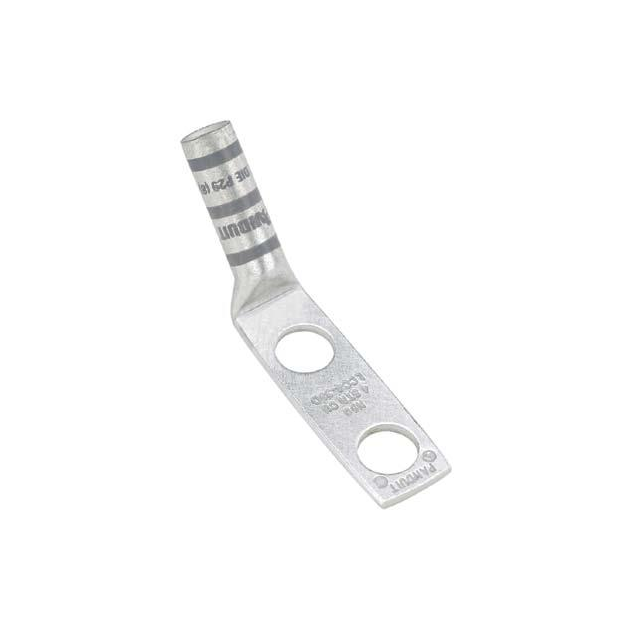

Panduit Corp Pan-Lug™ LCC4-38DH-L is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates wire gauges from 2 to 4 AWG and features a 3/8 stud size with a tab thickness of 0.080 inches (2.03mm). The terminal style incorporates two stud holes, facilitating secure mounting. Its termination method is crimp, utilizing a barrel design for reliable conductivity. The overall width across outer edges is 0.620 inches (15.75mm). Mounting can be achieved via a free hanging (in-line) configuration or at a 45° angle. This Panduit Corp product is commonly employed in industrial automation, power distribution, and renewable energy systems where dependable termination is critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | Two Stud Holes |
