LCC4-14BW-L
CONN TERM RECT TONG 2-4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

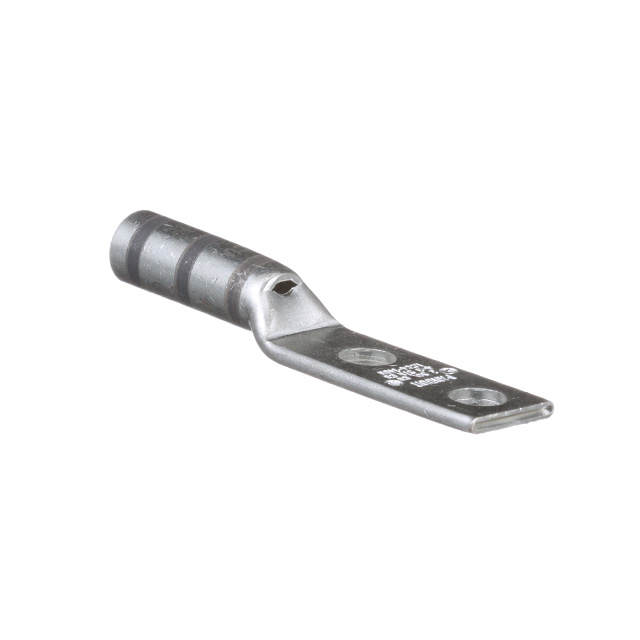

Panduit Corp Pan-Lug™ LCC4-14BW-L is a non-insulated rectangular tongue terminal connector designed for wire gauges 2-4 AWG. Featuring a 1/4 stud size and a tab thickness of 0.090 inches, this component offers a two-stud hole configuration for robust termination. The overall length is 2.630 inches with an outer width of 0.550 inches. Termination is achieved via crimp to the barrel. This component is commonly utilized in industrial automation, power distribution, and telecommunications applications. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.630"" (66.80mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
