LCC4-14BH-L
CONN TERM RECT TONG 2-4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

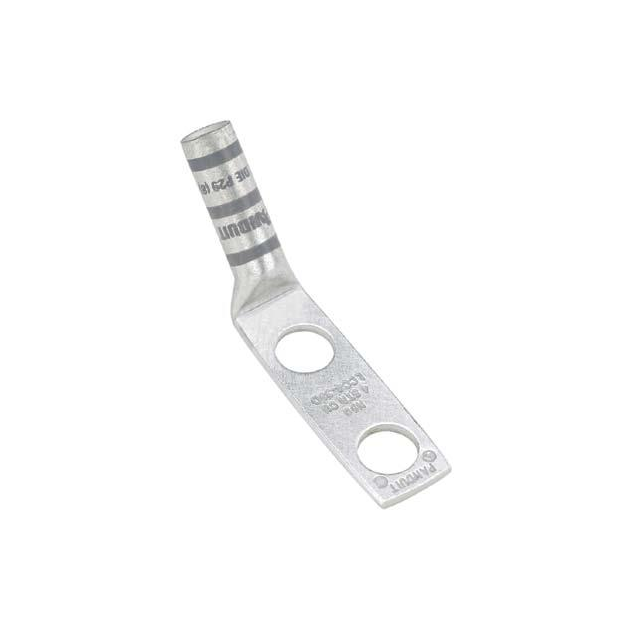

Panduit Corp Pan-Lug™ LCC4-14BH-L is a non-insulated, rectangular tongue terminal connector designed for 2-4 AWG wire. Featuring a 0.550" (13.97mm) outer width and a 0.090" (2.29mm) tab thickness, this component utilizes a crimp termination method to a barrel. The LCC4-14BH-L is equipped with two stud holes, accommodating a 1/4" stud size, and offers both free hanging (in-line) and 45° angle mounting capabilities. This terminal is commonly employed in power distribution, industrial automation, and renewable energy applications. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
