LCC4-14BF-L
CONN TERM RECT TONG 2-4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

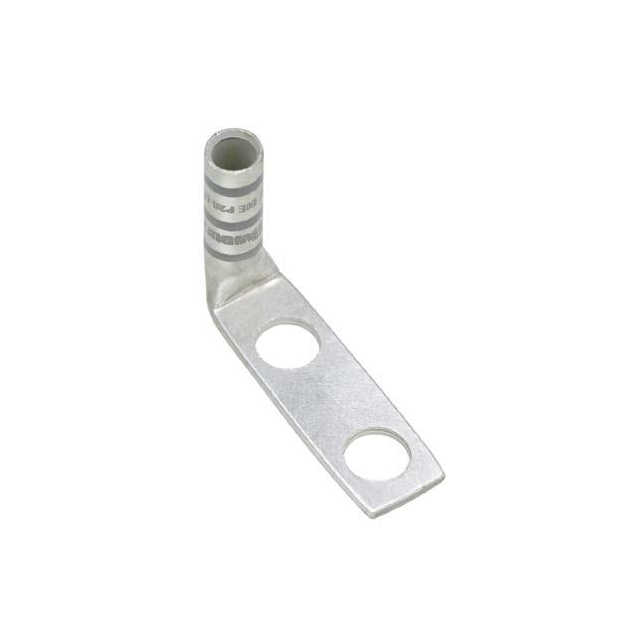

Panduit Corp Pan-Lug™ LCC4-14BF-L is a non-insulated rectangular tongue terminal connector designed for robust electrical connections. This component accommodates wire gauges from 2 to 4 AWG and features two 1/4 stud holes for secure mounting. The terminal style is a rectangular tongue with a crimp barrel termination, ensuring reliable conductivity. With an outer edge width of 0.550 inches (13.97mm) and a tab thickness of 0.090 inches (2.29mm), it provides a substantial connection point. The mounting type supports free hanging (in-line) and right-angle configurations. This Panduit Corp component is utilized in industrial power distribution, renewable energy systems, and heavy equipment manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
