LCC4-14AH-L
CONN TERM RECT TONG 2-4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

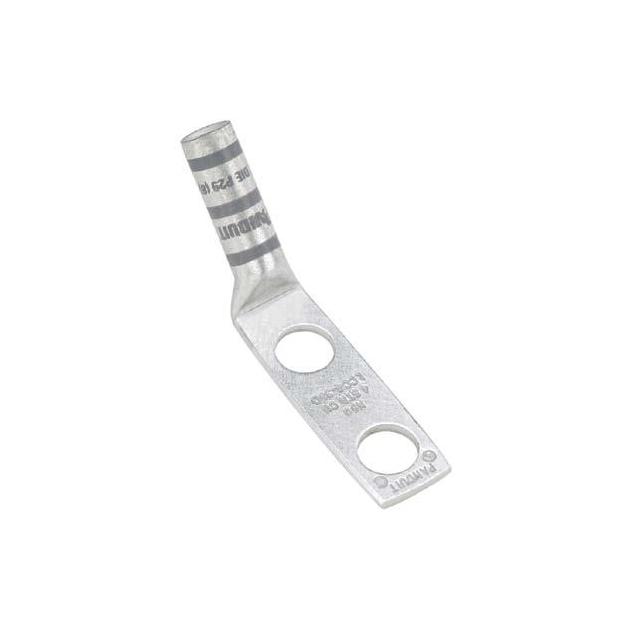

Panduit Corp Pan-Lug™ LCC4-14AH-L is a non-insulated rectangular tongue terminal connector designed for 2-4 AWG wire. This component features two stud holes, a 1/4 stud size, and a tab thickness of 0.090 inches (2.29mm). The overall width is 0.550 inches (13.97mm). Termination is achieved via crimp to the barrel. Mounting options include free hanging (in-line) and a 45° angle. This bulk-packaged terminal is suitable for applications requiring robust electrical connections in industrial automation and power distribution systems.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
