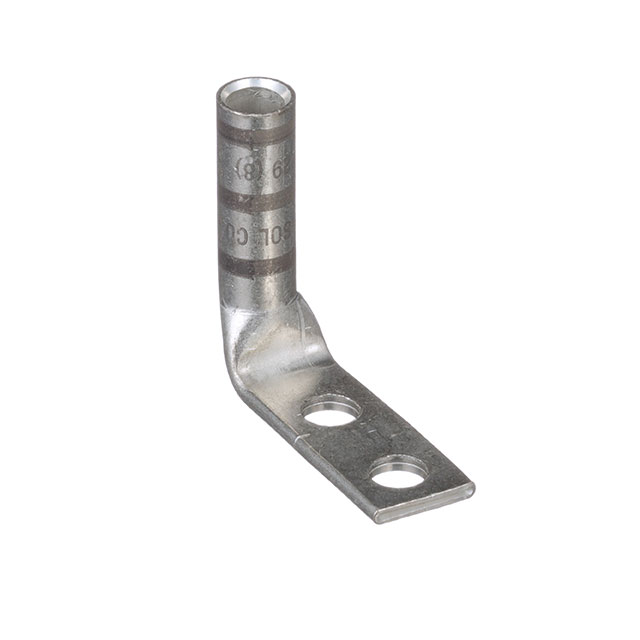

LCC4-14AF-L
CONN TERM RECT TONG 2-4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCC4-14AF-L is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component supports wire gauges from 2 to 4 AWG and features a 1/4 Stud size with a tab thickness of 0.090 inches (2.29mm). The terminal style includes two stud holes, facilitating secure mounting. Termination is achieved via crimp to the barrel. The overall width across outer edges is 0.550 inches (13.97mm). This connector is suitable for free hanging (in-line) or right-angle mounting configurations. Applications include power distribution, industrial control systems, and renewable energy infrastructure.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 2-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
