LCC4-14ADW-L
CONN TERM RECT LUG 2-4 AWG #1/4Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

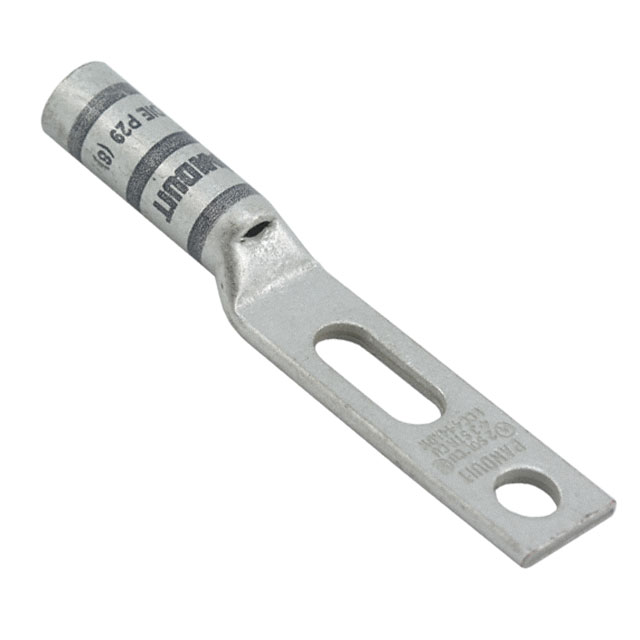

Panduit Corp Pan-Lug™ LCC4-14ADW-L is a non-insulated, rectangular lug terminal designed for grounding applications. This component accommodates wire gauges from 2 to 4 AWG and features a 1/4 stud size. The termination method is crimp, utilizing a barrel design. Key dimensions include an overall length of 2.870 inches (72.90mm) and an outer edge width of 0.550 inches (13.97mm), with a tab thickness of 0.090 inches (2.29mm). The terminal style offers both slotted and round options for versatility. This Panduit Corp component is suitable for mounting in a free hanging, in-line configuration. It is typically supplied in box packaging. Applications for this type of terminal can be found across various industrial and electrical infrastructure sectors requiring robust grounding solutions.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Box |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 2-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Lug, Grounding |
| Stud/Tab Size | 1/4 Stud |
| Length - Overall | 2.870"" (72.90mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Slotted and Round |
