LCC4-10AWH-L
CONN TERM RECT TONG 2-4 AWG #10Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

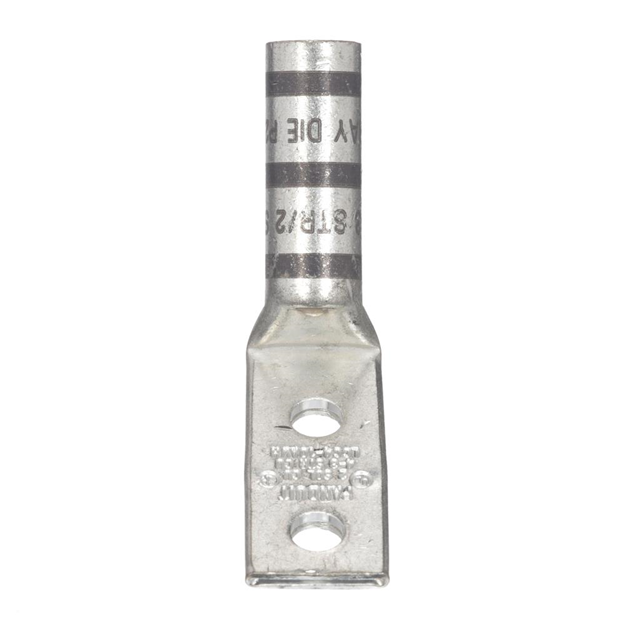

Panduit Corp Pan-Lug™ LCC4-10AWH-L is a non-insulated rectangular tongue terminal designed for robust electrical connections. This component accommodates wire gauges from 2 to 4 AWG and features two #10 stud holes for secure mounting. The terminal style is a rectangular tongue with a crimp barrel termination. Manufactured by Panduit Corp, this bulk-packaged component offers a stud/tab size of #10 and a tab thickness of 0.090 inches (2.29mm). Its outer edge width is 0.550 inches (13.97mm). The LCC4-10AWH-L is suitable for applications requiring reliable termination in industrial power distribution and electrical infrastructure. Mounting is facilitated by its free-hanging (in-line) capability with a 45° angle option.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 2-4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 10 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.550"" (13.97mm) |
| Tab Thickness | 0.090"" (2.29mm) |
| Terminal Style | Two Stud Holes |
