LCC4-00W-L
CONN TERM RECT TONG 4 AWGManufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

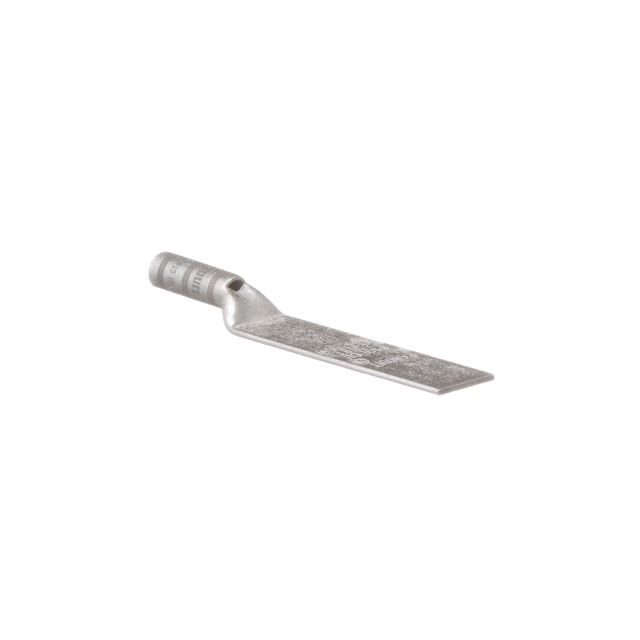

Panduit Corp Pan-Lug™ LCC4-00W-L is a non-insulated, rectangular tongue terminal connector designed for crimp barrel termination. This component is engineered for 4 AWG wire gauge, featuring a tab thickness of 0.080 inches (2.03mm) and an overall length of 3.090 inches (78.49mm). The outer edges measure 0.620 inches (15.75mm) wide. The LCC4-00W-L offers a free hanging (in-line) mounting type, facilitating flexible installation in various configurations. This terminal is suitable for applications requiring robust electrical connections in industrial automation, power distribution, and telecommunications sectors. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Gray |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | - |
| Length - Overall | 3.090"" (78.49mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 0.620"" (15.75mm) |
| Tab Thickness | 0.080"" (2.03mm) |
| Terminal Style | No Stud Hole |
