LCC4/0-38H-X
CONN TERM RECT TONG 4/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

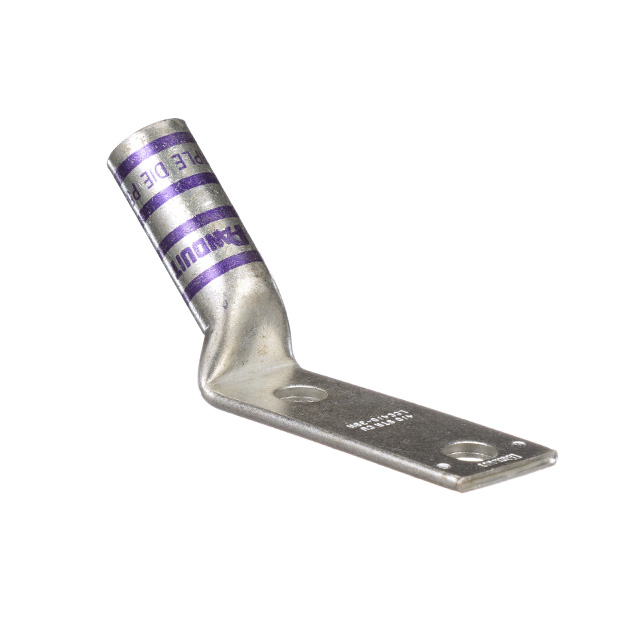

Panduit Corp Pan-Lug™ LCC4-0-38H-X is a non-insulated, rectangular tongue terminal designed for robust electrical connections. This component accommodates 4/0 AWG wire and features a 3/8 stud size with a tab thickness of 0.140 inches. The terminal style includes two stud holes for secure mounting, and the overall width is 1.060 inches. Termination is achieved via a crimp barrel. Mounting options include free hanging (in-line) and a 45° angle configuration. The LCC4-0-38H-X is supplied in bulk packaging. This terminal is frequently utilized in power distribution, industrial automation, and renewable energy systems requiring high-current carrying capacity and reliable termination.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
