LCC4/0-38DWF-X
CONN TERM RECT TONG 4/0 AWG #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

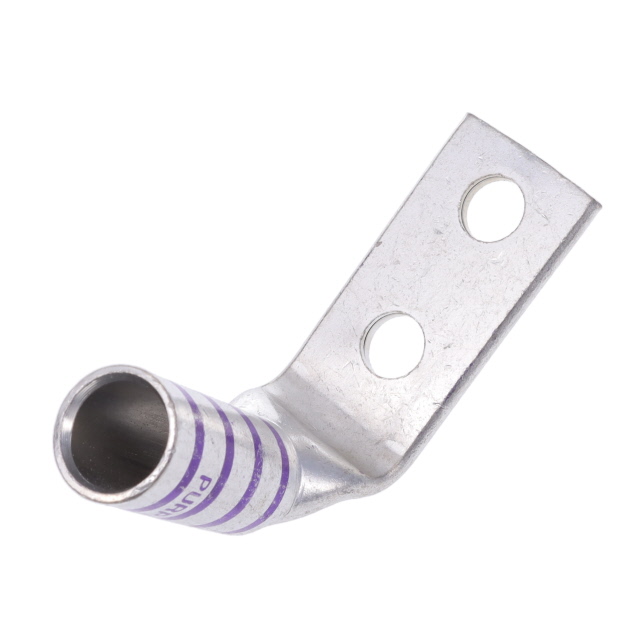

Panduit Corp Pan-Lug™ LCC4-0-38DWF-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 4/0 AWG wire gauge capacity and a 3/8" stud size, with a tab thickness of 0.140". The terminal style includes two stud holes, and termination is achieved via crimping onto the barrel. Its dimensions include an outer width of 1.060" (26.92mm). The mounting type is suitable for free hanging (in-line) or right-angle configurations. This component is commonly utilized in power distribution, industrial automation, and renewable energy systems. Packaged in bulk, this Panduit Corp terminal connector offers durable performance for demanding applications.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
