LCC4/0-12DW-X
CONN TERM RECT TONG 4/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

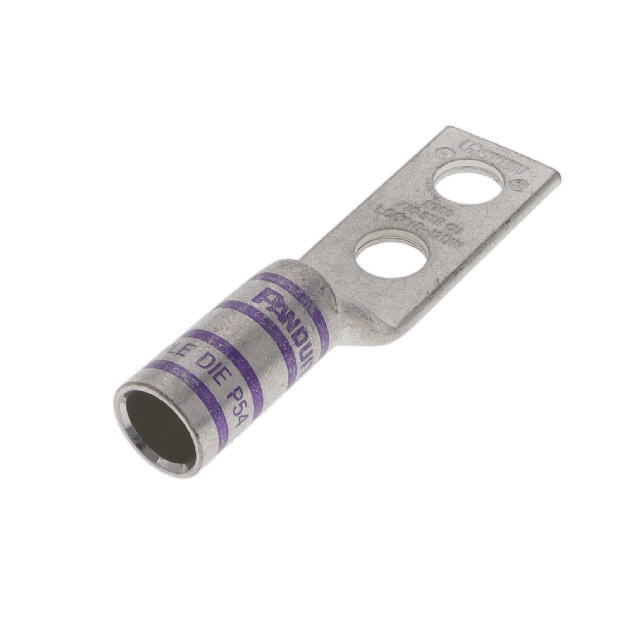

Panduit Corp Pan-Lug™ LCC4-0-12DW-X is a non-insulated rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 4/0 AWG wire gauge and features a 1/2 stud size, with two stud holes for secure mounting. The overall length is 4.040 inches (102.62mm), and the width across outer edges is 1.060 inches (26.92mm). With a tab thickness of 0.140 inches (3.56mm), it is engineered for crimp termination via its barrel. This terminal is provided in bulk packaging and is suitable for applications in power distribution and industrial automation where reliable, high-current connections are essential.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 4.040"" (102.62mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
