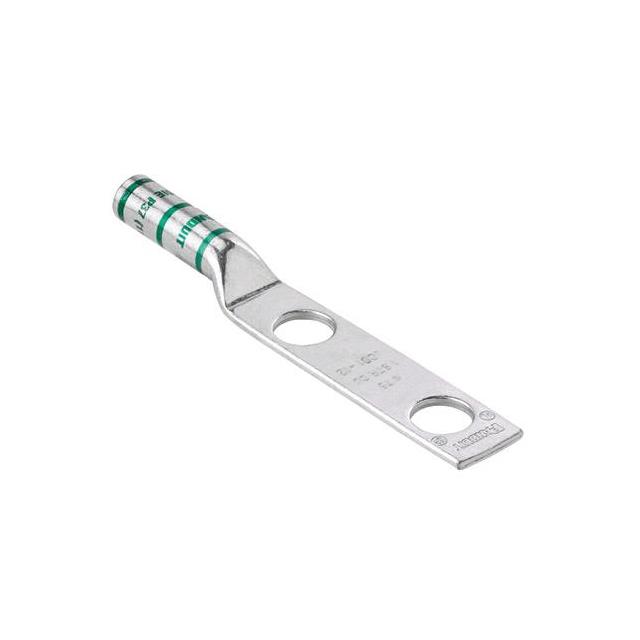

LCC4/0-12D-X
CONN TERM RECT TONG 4/0 AWG #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More
Panduit Corp Pan-Lug™ LCC4-0-12D-X is a non-insulated rectangular tongue terminal connector designed for robust electrical connections. This component accommodates 4/0 AWG wire gauge and features a 1/2 stud size for secure mounting. The LCC4-0-12D-X is engineered with a two-stud hole terminal style, offering enhanced termination reliability. It utilizes a crimp barrel termination method and boasts an overall length of 4.220 inches (107.19mm) with an outer edge width of 1.060 inches (26.92mm). The tab thickness is 0.140 inches (3.56mm). This Panduit Corp terminal is suitable for high-current applications in industries such as power generation, industrial automation, and renewable energy. The component is supplied in bulk packaging and is colored purple.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Purple |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 4/0 AWG |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | 4.220"" (107.19mm) |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.060"" (26.92mm) |
| Tab Thickness | 0.140"" (3.56mm) |
| Terminal Style | Two Stud Holes |
Request a Quote
