LCC350-38DWF-X
CONN TERM RECT TONG 350 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

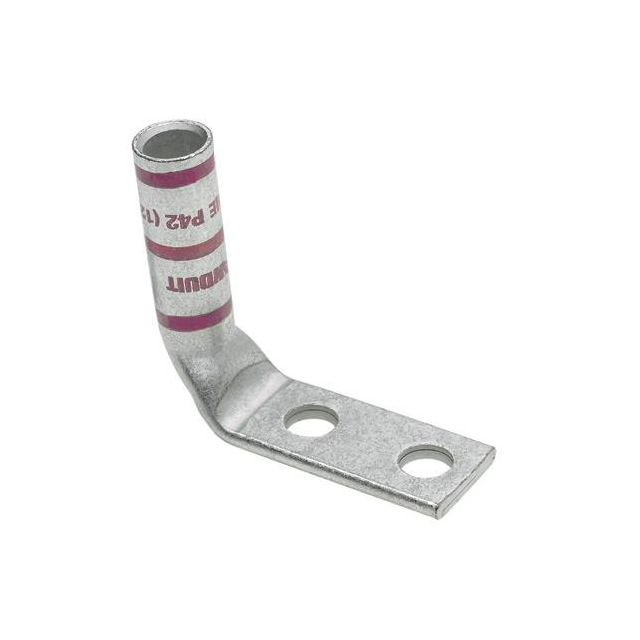

Panduit Corp Pan-Lug™ LCC350-38DWF-X is a non-insulated, rectangular tongue terminal connector designed for robust electrical connections. This component features a 350 MCM (kcmil) wire gauge capacity and accommodates a 3/8 stud size. The terminal style includes two stud holes, with a tab thickness of 0.170" (4.32mm) and an outer edge width of 1.280" (32.51mm). Termination is achieved via crimp to a barrel. Mounting options include free hanging (in-line) and right-angle configurations. This component is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing sectors. Packaged in bulk, this Panduit Corp lug is suitable for high-current applications requiring reliable termination.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Two Stud Holes |
