LCC350-38DH-X
CONN TERM RECT TONG 350 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

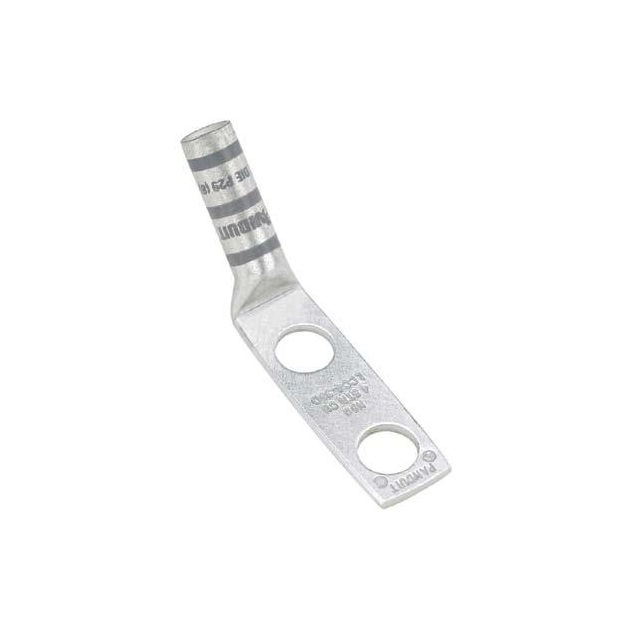

Panduit Corp LCC350-38DH-X is a non-insulated Pan-Lug™ rectangular tongue terminal connector designed for high-capacity wire termination. This cULus Listed and RoHS compliant component is engineered for 350 MCM (kcmil) wire gauges and features a 3/8" stud size with two stud holes for secure mounting. The terminal's rectangular tongue design, with an overall width of 1.280" (32.51mm) and a tab thickness of 0.170" (4.32mm), facilitates robust crimp termination. Its free hanging (in-line) mounting capability, with an optional 45° angle option, makes it suitable for industrial power distribution, electrical infrastructure, and heavy-duty equipment applications where reliable and high-amperage connections are critical. Supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Two Stud Holes |
