LCC350-12H-X
CONN TERM RECT TONG 350 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

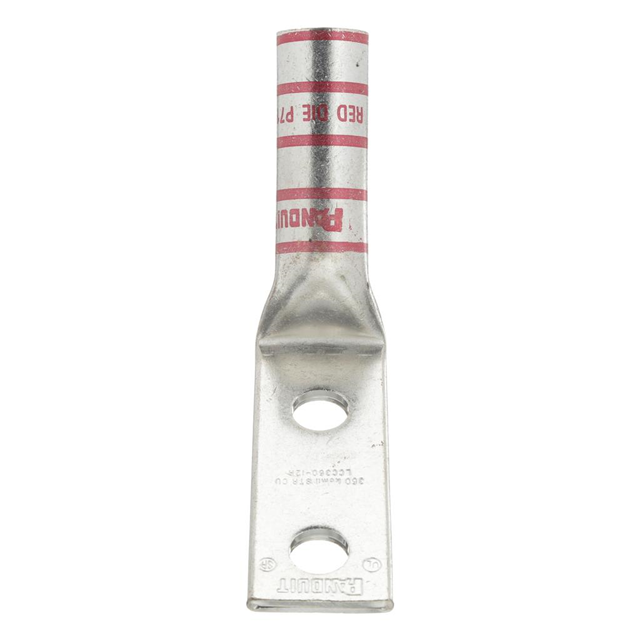

Panduit Corp Pan-Lug™ LCC350-12H-X is a non-insulated, rectangular tongue terminal connector designed for heavy-duty electrical applications. This component features a 350 MCM (kcmil) wire gauge capacity and accommodates a 1/2 stud size. The terminal style includes two stud holes with a tab thickness of 0.170 inches (4.32mm) and an outer edge width of 1.280 inches (32.51mm). Termination is achieved via crimp barrel connection. The mounting type offers flexibility with free hanging (in-line) or a 45° angle configuration. This Panduit Corp component is commonly utilized in power distribution, industrial automation, and heavy equipment manufacturing sectors where reliable high-current connections are critical. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Two Stud Holes |
