LCC350-12F-X
CONN TERM RECT TONG 350 MCM #1/2Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

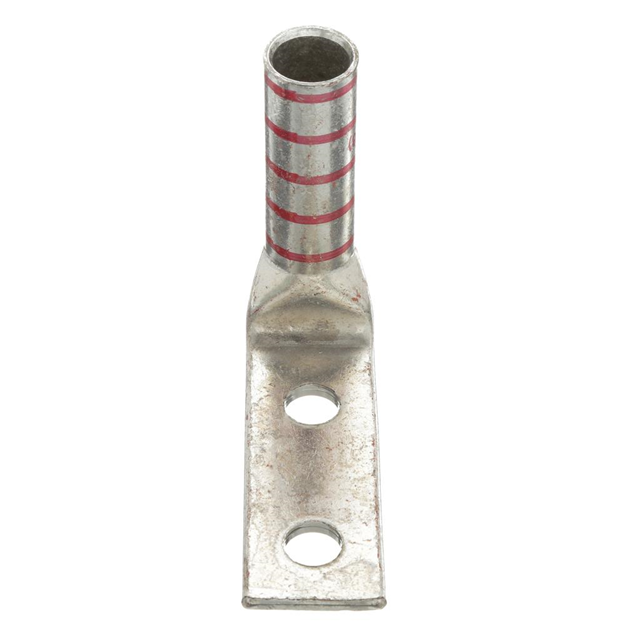

Panduit Corp's Pan-Lug™ LCC350-12F-X is a non-insulated, rectangular tongue terminal connector designed for robust wire termination. This component accommodates 350 MCM (kcmil) wire sizes and features dual 1/2 stud mounting holes. The terminal style utilizes a two-stud configuration, facilitating secure connections. With a barrel termination suitable for crimping, the LCC350-12F-X offers a reliable connection point. Its outer edge width measures 1.280" (32.51mm), with a tab thickness of 0.170" (4.32mm). This connector is commonly employed in power distribution, industrial automation, and renewable energy systems where high-current, secure electrical connections are critical. The LCC350-12F-X is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | Red |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Wire Gauge | 350MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 1/2 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.280"" (32.51mm) |
| Tab Thickness | 0.170"" (4.32mm) |
| Terminal Style | Two Stud Holes |
