LCC300-38DH-X
CONN TERM RECT TONG 300 MCM #3/8Manufacturer: Panduit Corp
Categories: Lugs
Quality Control: Learn More

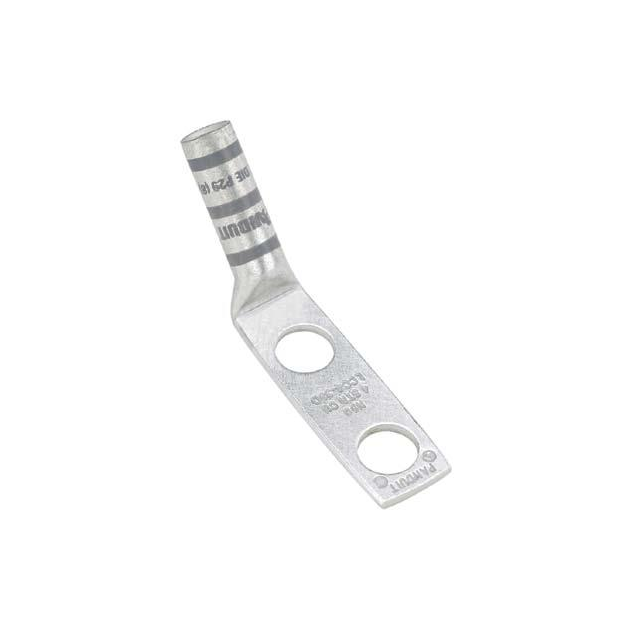

Panduit Corp LCC300-38DH-X is a non-insulated, rectangular tongue terminal from the Pan-Lug™ series. Designed for robust electrical connections, this terminal accommodates 300MCM (kcmil) wire gauge and features a 3/8 Stud size with two stud holes for secure mounting. The terminal style is a rectangular tongue with a barrel termination designed for crimping. Its overall width is 1.190 inches (30.23mm) with a tab thickness of 0.160 inches (4.06mm). The mounting type allows for free hanging (in-line) or a 45° angle configuration. This component finds application in power distribution, industrial automation, and heavy equipment manufacturing. It is supplied in bulk packaging.
Additional Information
Series: Pan-Lug™RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Color | White |
| Mounting Type | Free Hanging (In-Line), 45° Angle |
| Wire Gauge | 300MCM (kcmil) |
| Insulation | Non-Insulated |
| Terminal Type | Rectangular Tongue |
| Stud/Tab Size | 3/8 Stud |
| Length - Overall | - |
| Termination | Crimp, Barrel |
| Width - Outer Edges | 1.190"" (30.23mm) |
| Tab Thickness | 0.160"" (4.06mm) |
| Terminal Style | Two Stud Holes |
